belt conveyor roller for mining from China manufacturer - Hebei Shuanghuan Conveyoring Equipment Manufacturing Co.,Ltd

Price:	5.0~100.0 USD
Payment Terms:	T/T,L/C,D/P,WU
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: BHR

Production Capacity: 200000PIECES PER YEAR

Delivery Date: 5 days after receiving the ...

Material: Others

Brand Name: shuanghuan

Means of Transport: Ocean,Air

Packing: Standard wooden box for con...

Structure: Belt Conveyor

Material Feature: Heat Resistant

Name: Adjusting core belt conveyo...

1.Adjusting core belt conveyor roller for mining
2.Diameter:50-219mm
3.length:190-3400mm
4.Lifetime:Least 30,000h
5.ISO,CE

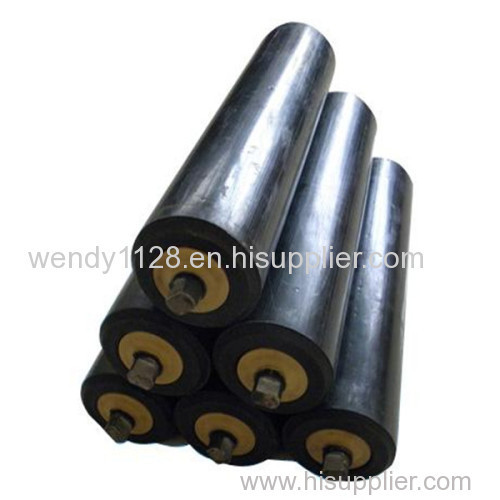

Adjusting core belt conveyor roller for mining

Hebei Shuanghuan Conveying Equipment Manufacturing Co.,Ltd is a professional manufacturer of conveying equipment, covering an area of more than 60,000 square meters, with the registered capital of $ 200,000. Mainly engaged in designing and manufacturing bulk conveying system and equipment, we have specialized in manufacturing belt conveyor, conveyor roller, conveyor idler, conveyor pulley for 20 years.

Details of conveyor roller:

1) Diameter: 50mm-219mm.

2) length: 190-3400mm.

3) Tube: Q235.

4) Shaft: 45# STEEL.

5) Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.

6) Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard

Rubbing Flinger Seal.

7) Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.

8) Welding: Mixed gas shielded arc welding end.

9) Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

Summary of the conveyor roller size:

Diameter(mm)	Length scope(mm)	Shaft diameter(mm)	Shell wall thickness(mm)
89	150-2500	20,25	3.2-6
102		25,25,30	3.5-6.0
108		25,25,30
114		25,25,30
127		25,25,30
133		25,25,30
140		25,25,30
152		25,25,30	4.0-6.0
159		25,25,30	4.0-6.0
165		25,25,30,40,45	4.5-6.0
177.8		25,25,30,40,45
190.7		25,25,30,40,45
194		25,25,30,40,45
219		25,25,30,40,45

Manufacturing process of conveyor roller:

Application of conveyor roller:

Conveyor rollers are used in areas such as coal mining industry, cement industry, power industry and port etc.

Painting and surface treatment of conveyor roller:

We use ordinary painting, hot galvanized painting, electric static spraying painting, baked painting or as per customers' requirements.

Package of conveyor roller:

We use wooden case for conveyor roller or as per customers' requirements.

Transportation:

We use 20' and 40' container for the conveyor rollers.

Manufacturing equipment:

Factory scenes:

Certificate:

In order to ensure the quality of products, our company achieved ISO9001:2000 quality management system certification. According to GB/T19001-2000 standard, we have established the quality management system, which provides a reliable guarantee for the stable quality of products and the further development of our company.

Frequently Asked Questions of Our Customers:

Q: What are we doing?
A: We specialized in manufacturing and designing conveyors and accessories(conveyor roller, conveyor pulley, conveyor idler, frame etc) for 19 years.

Q: What's the advantage compared to other suppliers?
A:We provide conveyor and accessories with competitive price and superior service. We have professional sales team, production team, researching team.

Q:How is our customer service?
A: all our sales representatives can speak fluent English. They will answer all of your questions in 24 hours.

Q:What others can we offer?
A: Based on the wide product range, we offer the best One-Stop sourcing service. We will definitely save you a lot of time and money, and based on our huge quantity of shipment, we can get the best shipping service from the best forwarders.This will also help you to save a lot on the shipment.For the installing of the large-scale belt conveyor, overseas service is accessible for us.

Q:What is the MOQ of our products?
A:The MOQ for conveyor roller is 5 pieces.

Q:What is the payment of our company?
A. Both T/T and L/C is acceptable for us.
